Honda had a successful model year with the 2015 CRF450R, enjoying strong results in AMA Supercross stadiums (the bike finished on the podium at every round) and on dealership floors. As Honda's engineers developed the 2016 model, their focus was on refining performance, particularly in the area of handling.

CHANGES FOR 2016

Change Detail Reason
Longer fork 5mm longer Raises front end to improve chassis balance
New rear-suspension link Different ratio Changed to match longer fork, and to improve tracking
Revised rear-suspension settings   Corresponds with longer fork
Revised adjusters for rear-suspension damping  8 clicks per rotation of adjusters (compared to previous 4) Increased tuning adjustment
Smaller-diameter chain roller 38mm -> 34mm Swingarm travels further before chain/roller interface restricts movement; improves traction

IMPORTANT FEATURES

Chassis

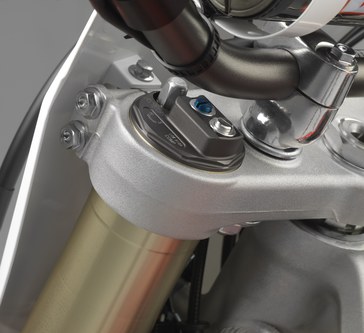

Revolutionary 48mm inverted KYB PSF (Pneumatic Spring Fork) offers high- and low-speed adjustment for both compression and rebound damping, enabling precise adjustment of suspension performance no matter the conditions. The air fork also weighs less than a coil-spring fork, and making changes to spring rate is both easier and less expensive.

The Honda Progressive Steering Damper (HPSD) works in conjunction with the suspension to provide excellent steering precision, whether the rider is braking into a corner, accelerating out, skimming whoops or navigating ruts.

The large (260mm) front brake rotor allows excellent modulation, and its wave pattern minimizes weight. Dunlop's MX52 tires utilize "block-on-block" technology to provide excellent feedback and traction.

Engine
Honda's 449cc Unicam liquid-cooled single-cylinder four-stroke power plant returns for 2016. The piston is specially treated for maximum durability, and the twin-exhaust system eases maneuverability by centralizing mass.

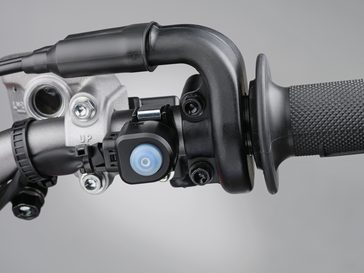

Settings on the PGM-FI (Programed Fuel Injection) emphasize low- and midrange power for smooth, predictable engine performance, and Honda's handlebar-mounted Engine-Mode Select button enables the rider to choose between three settings: Standard, Smooth, Aggressive. This feature can be used in conjunction with the available HRC Fuel Injection Setting Tool to further customize engine-output characteristics.

2016 Honda CRF450R Specifications

Engine Type: 449cc liquid-cooled single-cylinder four-stroke

Bore and Stroke: 96.0mm x 62.1mm

Compression Ratio: 12.5:1

Valve Train: Unicam, four-valve; 36mm intake, titanium; 31mm exhaust, steel

Induction: Dual-Timing PGM-FI, 46mm throttle body

Ignition: Full transistor with electronic advance

Transmission: Close-ratio five-speed

Final Drive: #520 chain; 13T/48T

Suspension

  • Front: 48mm inverted KYB PSF (Pneumatic Spring Fork) with air-adjustable spring rate, and rebound and compression-damping adjustability; 12.2 inches travel. (Fork length 5mm longer than 15ym)

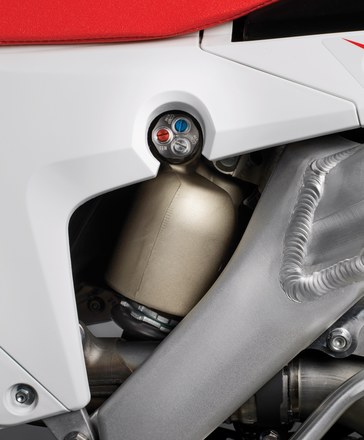

  • Rear: Pro-Link® KYB single shock with adjustable spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and high-speed; 12.4 inches travel

Brakes

  • Front: Single 260mm wave-style disc with twin-piston caliper
  • Rear: Single 240mm wave-style disc

Tires

  • Front: Dunlop MX52 80/100-21
  • Rear: Dunlop MX52 120/80-19

Wheelbase: 58.8 inches (increased from 2015ym)

Rake (Caster Angle): 27° 15’

Trail: 117mm (4.6 inches) (increased from 2015ym)

Seat Height: 37.6 inches (increased from 2015ym)

Ground Clearance: 13.1 inches (increased from 2015ym)

Fuel Capacity: 1.7 gallons

Color: Red

Curb Weight*: 243.0 pounds

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride.

Consult owner’s manual for optional parts.

Specifications subject to change
